DLE 30 Gasoline engine- rear carburetor

DLE 30 Gasoline engine- rear carburetor

DLE 30 Gasoline engine- rear carburetor

of DLE Engines
SKU: DLE-30
To buy this product contact us at ordini@8fly.it

Description

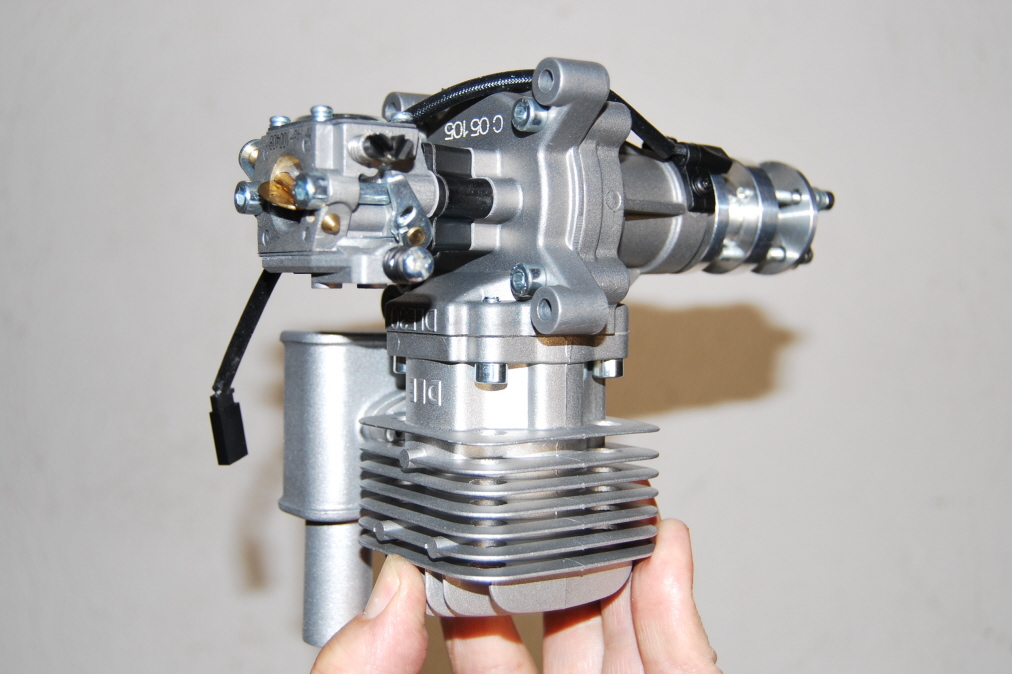

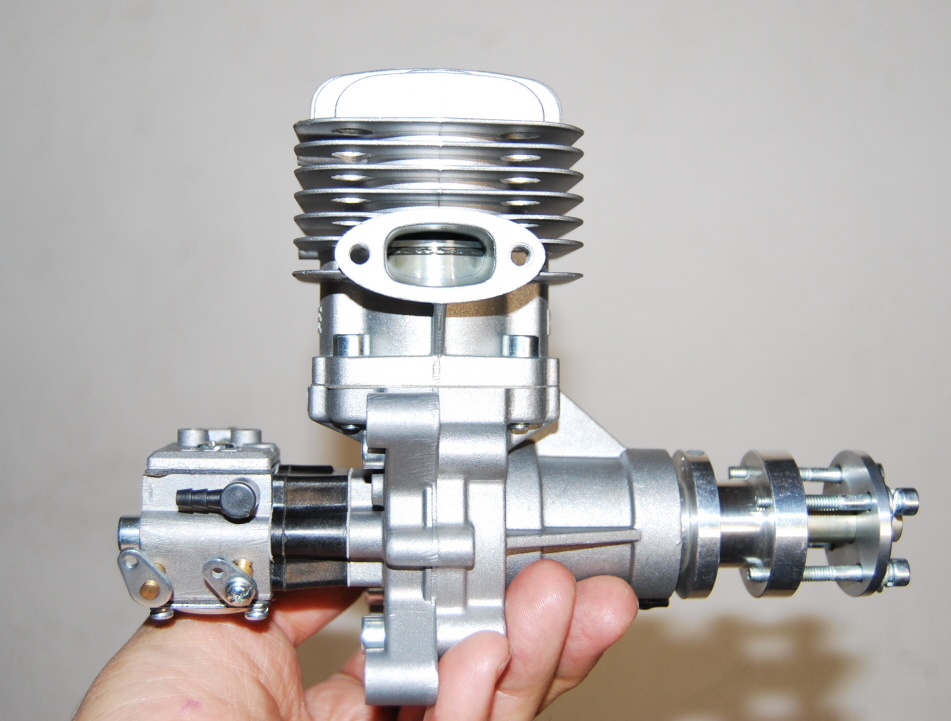

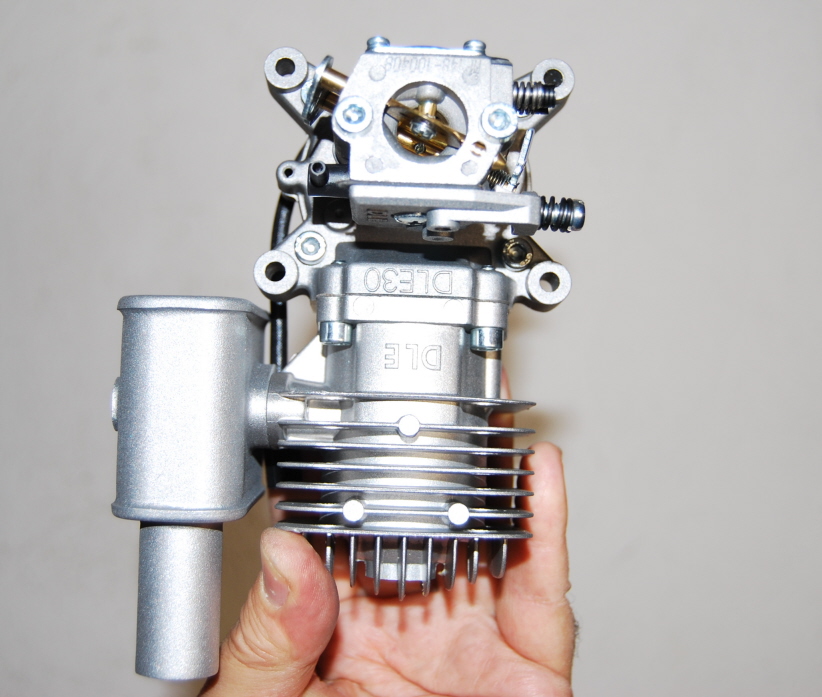

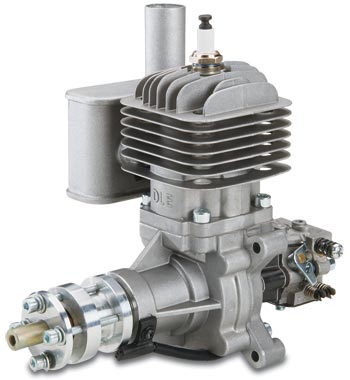

New DLE30 30cc gasoline engine - REAR CARBURETOR

Performance：
3.7HP/8500rpm
Idle Speed: 1600rpm/min.
8.5KG Pulling Force/ 100 meters Altitude
7.5KG Pulling Force/1800 meters Altitude
The specification of the aircraft propeller:  18*8  18*10 19*8  20*8

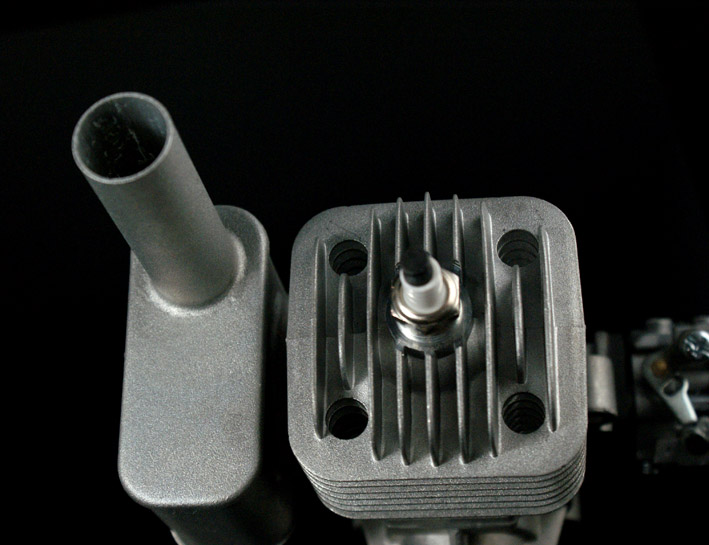

The type of the sparking plug: NGK CM6

Parameter:
Exhaust Amount: 30.5cm3
Diameterx stroke:36mm*30mm
Ratio of compression: 7.6:1
Ratio of lubricating capacity: 30:1

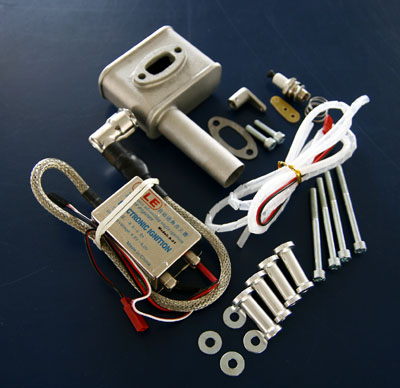

Weight: Main engine-910g. Exhaust Pipe-60g
Ignition equipment-120g
