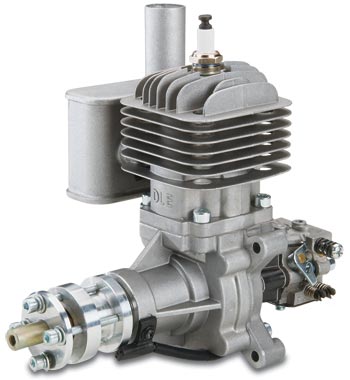

DLE 30 motore a benzina

DLE 30 motore a benzina

DLE 30 motore a benzina

di DLE Engines
Codice: DLE-30
Motore benzina DLE 30 cc.
Per acquistare questo articolo inviaci un'email a ordini@8fly.it

Descrizione

New DLE30 30cc gasoline engine

Performance：
3.7HP/8500rpm
Idle Speed: 1600rpm/min.
8.5KG Pulling Force/ 100 meters Altitude
7.5KG Pulling Force/1800 meters Altitude
The specification of the aircraft propeller:  18*8  18*10 19*8  20*8
The type of the sparking plug: NGK CM6

Parameter:
Exhaust Amount: 30.5cm3
Diameterx stroke:36mm*30mm
Ratio of compression: 7.6:1
Ratio of lubricating capacity: 30:1
Weight: Main engine-910g. Exhaust Pipe-60g
Ignition equipment-120g

Scheda Tecnica

GARANZIA 24 MESI SUI DIFETTI DI FABBRICA.
