Description

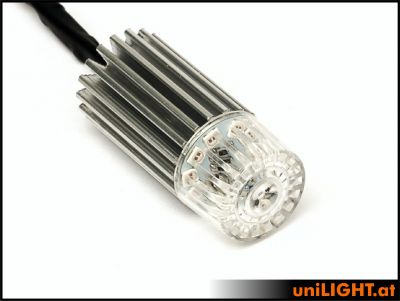

Power Navigation Light with 19mm diameter!
Multi-chip design allows extremely good light output with a compact design and low heat loss. Best light output in size with integrated thermal fuse.
The new round lights are supplied with a snap-on 19mm cap made of highly transparent polycarbonate. The faceted cap results in a perfect radiation over the entire horizon. Without the cap, the installation can be done very easily in margins and prefabricated recesses.
Datasheet
Electricity: 8W reference power with x2-technology, 8V/12V, 0.65A
Beam angle: 180°
Light intensity: ~220 Lumen RED
Light intensity: ~320 Lumen GREEN
Light intensity: ~550 Lumen WHITE
Dimension: D19x42mm
Weight: 12g (without cable)
Delivery: with 1m silicone connection cable, ready for connection for 8V/2S Lipo. Already mounted with high quality polycarbonat cap, additional resistor for 12V/3S operation
