Description

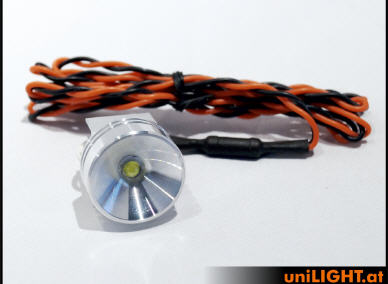

Flat Ultra-Power spotlight with up to 400 Lumen, CNC manufactured aluminium reflector with 26mm diameter. The spotlight must be glued directly on the gear leg with thermal conductive adhesive. Attention: this Ultra-Power luminaire has no temperature protection, a heat bridge connection to the carrier (undercarriage leg) is highly recommended.
Direct operation with 2S LiPo (8V). With 3S (12V), the additional resistor has to be soldered in or use a 8W connection cable (accessories). Please ensure sufficient cooling air during operation.
The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.
Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED!
Datasheet
Performance: 8Wx2 reference power
Voltage: 8V, use enclosed resistor for 12V, 0.7A
Beam angle: ~100°
Light intensity: ~400 Lumen WHITE
Light intensity: ~350 Lumen WARMWHITE
Dimension: D26x11mm
Weight: 10g (without cable)
Delivery: ready to use with 1m connection cable and additional resistor for 3S operation
Size comparison uniLIGHT system
