Topmodel Swift S1- 3,73 mt. ARF

Topmodel Swift S1- 3,73 mt. ARF

Topmodel Swift S1- 3,73 mt. ARF

of Topmodel Cz
SKU: TM02099
Swift S1- 3,73 mt. ARF
To buy this product contact us at ordini@8fly.it

Description

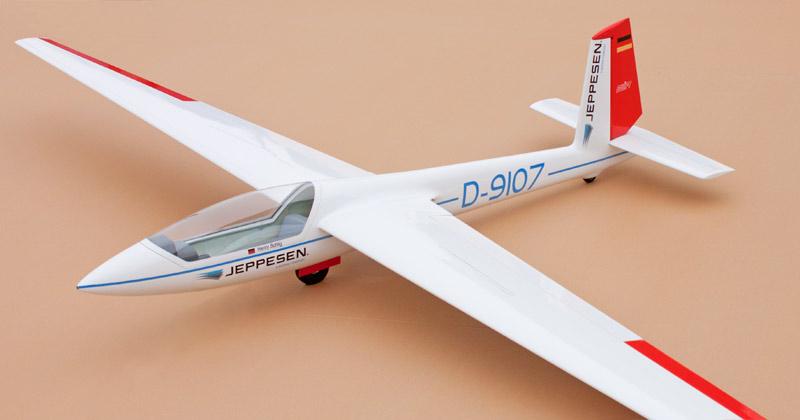

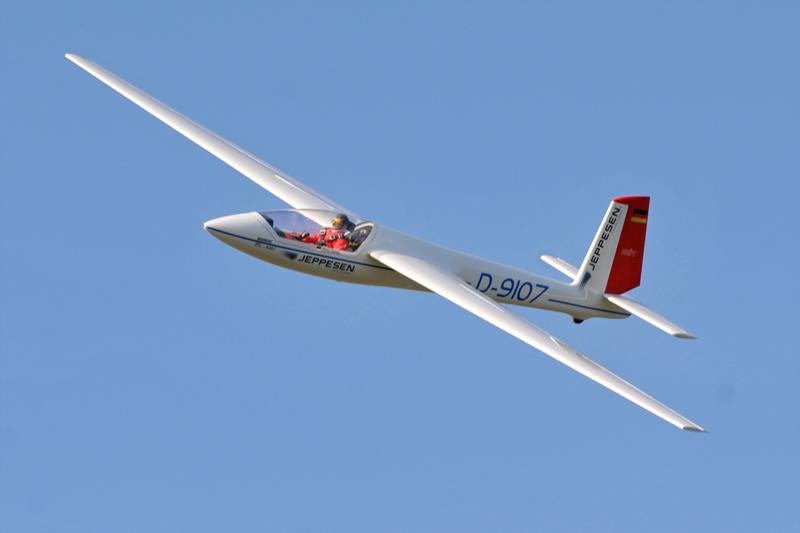

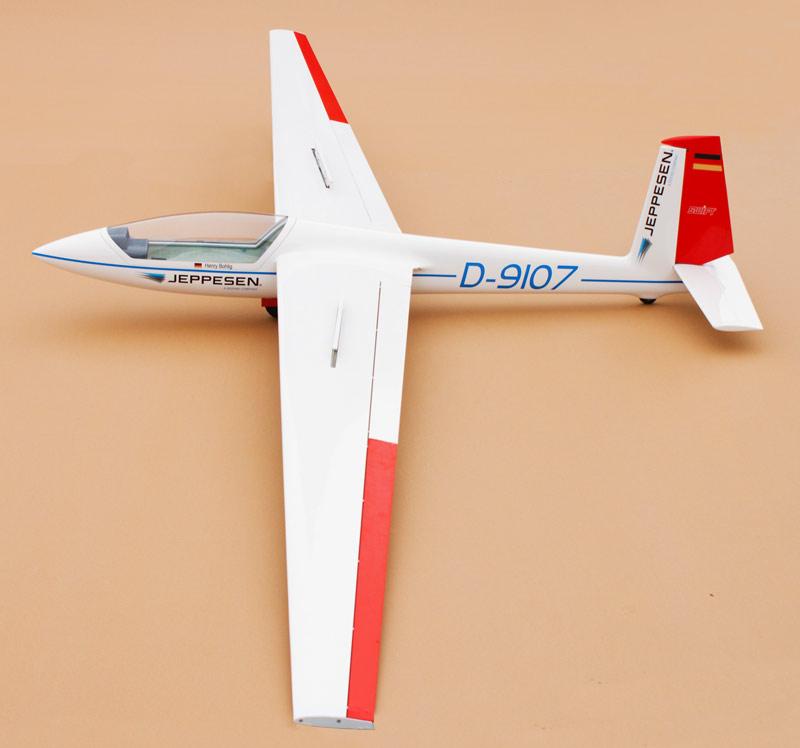

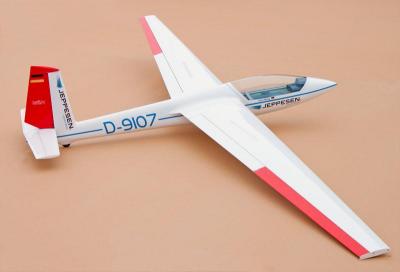

Semi-scale model of the famous sailplane.
The wings are equipped with air-brakes but also with camber flaps. These flaps have a longer length compared to reality and are divided into 2 parts. Thus, it is possible to use these 2 parts, together, like gigantic ailerons but also as camber flaps. This makes possible to make the Swift even more general-purpose and powerful in aerobatic. Swift S1 ARF (covered with Oracover®). ECONOMICAL version kit with simplified equipment and in lower stage of completion. The model is designed and manufactured in Czech Republic. Spare parts are in stock.

Datasheet

Technical specification:




3730 mm


1740 mm


5,8-6,8 kg


85,2 dm2


68-79,8 g/dm2


HQ 1,5-12


A-P-D-AF-TR-CR



The kit contents:
  • Ready fiberglass fuselage

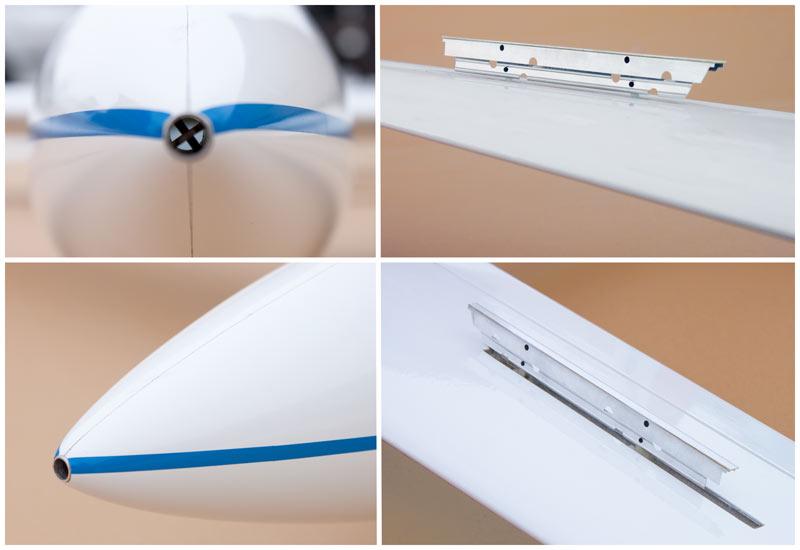

  • Ready foam core abachi wings with carbon-fibre reinforcing covered with Oracover® with metallic airbrakes already installed.
  • Ready foam core abachi horizontal stabiliser covered with Oracover®.
  • Fiberglass hollow moulded fin
  • Fiberglass cabin frame
  • Transparent cabin
  • Complete assembly manual
  • Accessories

Controls:

  • Ailerons (4 micro servos) - HS - 5245MG digi (HS 225 MG)
  • elevator (1 micro servo) - HS - 5245MG digi (HS 225 MG)
  • rudder (1 servo STD) - HS - 475HB
  • airbrakes (2 micro servos) - HS 82MG (HS 81)

Power Package Upgrade:

Hacker A50 14L / Axi 4130/16
Jeti Spin Pro 77 Opto ESC
6/8S LiPo battery (4,5-5Ah)
Aeronaut CAM Carbon 16x10 folding propeller
