PowerBox iGyro3e

SKU: PBX3600
PowerBox iGyro3e
To buy this product contact us at ordini@8fly.it

Description

The iGyro 3e is the little brother of the iGyro SRS, and offers an excellent performance. The control characteristics are identical to those of the iGyro SRS, and naturally the unit’s quality also reflects the very highest PowerBox standard!

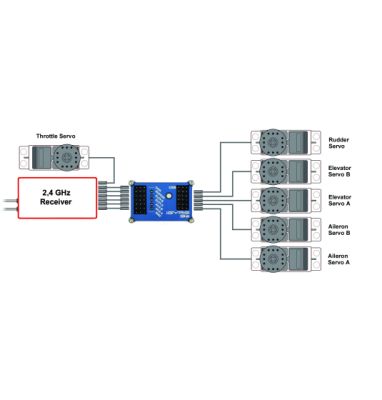

The iGyro 3e operates with normal PWM signals at the input and output, making it a straightforward task to install and set up the gyro in existing models. The iGyro 3e is simply looped in between the receiver and servos, and its gain can be adjusted in flight if one auxiliary channel is assigned to it. The net result is that it takes just a few minutes to install and set up the iGyro 3e.

The gain adjuster is divided into two ranges, enabling the pilot to pre-define different flight modes with the transmitter. As standard the iGyro 3e can be operated in Heading or Damping mode. Heading mode has been specially developed for fixed-wing model aircraft, and provides natural handling in the air. As you would expect, Heading mode can be left active for take-off and landing! It is supremely easy to adjust the ranges of the gain adjuster using a laptop or PC, as the Heading option and the strength of the gyro effect are fully variable, separately for each output.

Naturally the unit also features an integral delta and V-tail mixer, and any orientation in the model is possible.



 Features



  • Extremely accurate triple-axis MEMS sensor
  • Special regulatory algorithm designed for fixed-wing model aircraft
  • Three axes distributed to five servos, each adjustable independently
  • Input and output with PWM Signals
  • Input for in-flight gain adjustment
  • Heading or Normal mode can be selected in flight
  • Integral delta mixer
  • Installed orientation can be selected
  • 16-bit processor for fast, high-resolution signal processing
  • Updateable with PowerBox Systems USB Interface connectors

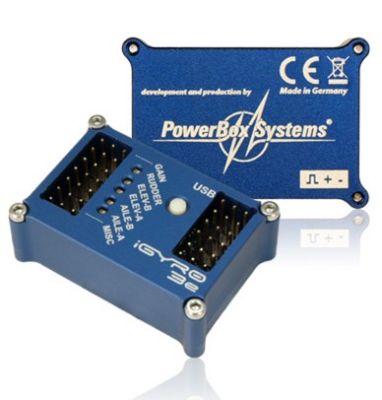

  • Robust aluminium case

Datasheet

Technical Data



Operating voltage 4.0V - 9.0V
Current drain Power-on state 40mA
Maximum load current 20A
Signal input PWM
Servo sockets 5
Servo signal resolution 0,5µs
Gyro regulation Heading- and Normalmode
Gyro sensor type MEMS
Number of sensor axes 3
Dimensions 43 x 30 x 15 mm
Weight 36g, inkl. 6 Patchleads
Temperature range -30°C to +75°C
