Description
The PowerBox Professional is a modern power supply system which contains all the electronic components required for today's receivers, servos and models. Every component needed for a totally secure airborne power supply, including ICs, micro-controller and electronic circuits, is duplicated!
This High-End power supply system features an outstanding range of the latest innovations, including a high-resolution graphic OLED screen, four match-channels catering for eight servos, and the facility to bind to the downlink channels of various manufacturers.
Features

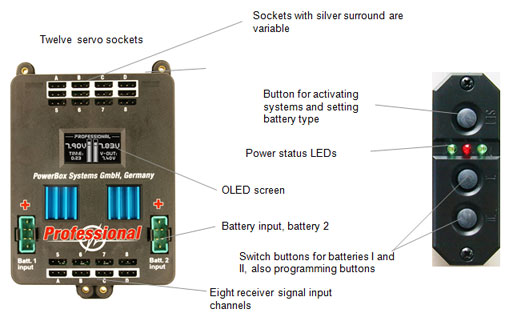

- High-resolution graphic OLED screen with 128 x 64 pixels
- Ultra-simple menu-based programming system using the Sensor-Switch Signal amplification for a total of eight channels and twelve servos
- Synchronised servo output: all servos operate totally synchronously
- 16-bit processor for high-speed, high-resolution signal processing
- Four match-channels, each for two servos; all servos separately variable
- Double regulated output voltage

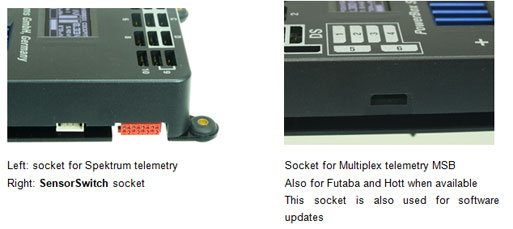

- Sockets for Multiplex MSB and Spektrum downlink bus systems, update capability with USB Interface Adapter for other systems
- Direct transmission of both battery voltage values to the transmitter
- Voltage display for each battery separately
- Servo voltages can be set to 5.9 V or 7.4 V
- Minimum value memory displays any voltage collapses
- Combined heat-sinks permit high regulator power
- Voltage regulator monitor
- Supports four battery types: LiPo, LiFePo, NiMH, NiCd
- Suppression of any servo feedback currents which may occur
- Can also be switched on and off using the MagSensor Update-capable using the PowerBox USB Interface Adapter
Datasheet
Operating voltage: 4,0V - 9,0V Power supply: 2 x 5s NiMH/NiCd, 2s LiPo, 2s LiFePo Current drain: approx. 130mA Idle current: approx. 15µA Output voltage: 5,9V or 7,4V stabilised Max. load current: Peak 2x20A Dropout voltage: 0,3V Receiver: 1 via parallel inputs Supported telemetry systems: DSM2/DSMX, M-Link Channels: 8, 4 of them programmable Servo outputs: 12, 8 of them programmable Servo signal resolution: 0,5µs Selectable signal frame rates: 9ms, 12ms, 15ms, 18ms, 21ms Integral screen: OLED graphic panel 128x64 pixels Dimensions: 110x72x24 Weight incl. switch: 130g Temperature range: -30°C to +75°C EMV approval: EN 55014-1:2006 CE: 2004/108/EG
