Description
New electronics by KingTec!
What will be new :
ECU with restart and glider feature
Touch Screen GSU
New KingTech pumps with an integrated and controlled by ECU, valve, no more dry running helps quicker start.
KingTech G series, a true Fuel Start turbine, will start and run on Diesel, Kerosene and JetA. G series have both solenoid valves built into the front cover, with a single fuel feed that eliminates at least 8 fuel connections upstream to the turbine, making a clean engine install a very simple task.

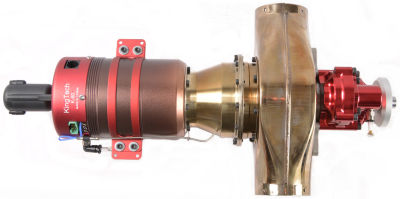

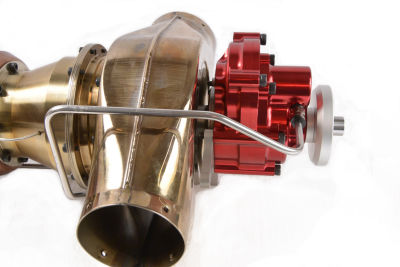

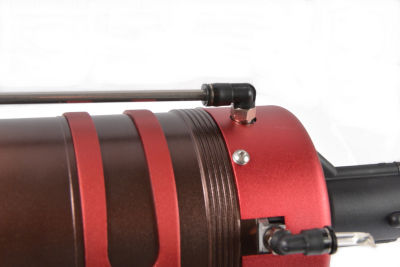

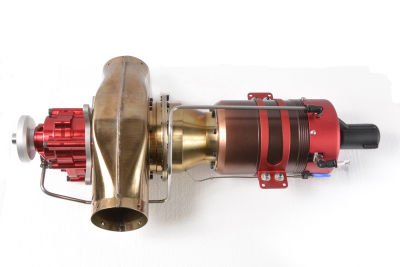

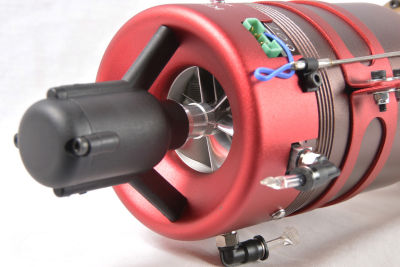

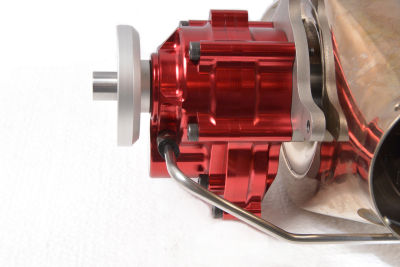

KingTech K-60TP turbine engine, made in Taiwan
Datasheet
Length: 385mm ( 15.15" )
Weight: 2400g ( 5 lb. 4 oz. )
Maximum Turbine RPM: 160,000
Power:7.3KW (5,000 to 7,000 RPM Dynamically )
EGT: 700°c max ( 1292°f max )
Fuel consumption: 240 g / min ( 8.46 oz. ) Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr USD550
Downloads
- Instructions (1,396 KB)
