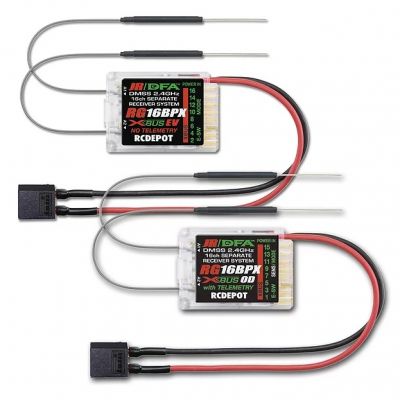

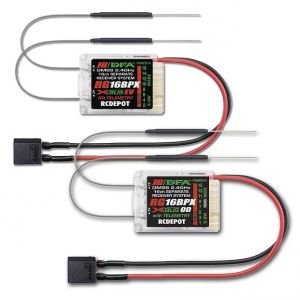

JR/DFA RG16BPX receiver OD/EV (R8P OD/EV)

JR/DFA RG16BPX receiver OD/EV (R8P OD/EV)
  • JR/DFA RG16BPX receiver OD/EV (R8P OD/EV)
  • JR/DFA RG16BPX receiver OD/EV (R8P OD/EV)
  • JR/DFA RG16BPX receiver OD/EV (R8P OD/EV)
  • JR/DFA RG16BPX receiver OD/EV (R8P OD/EV)
  • JR/DFA RG16BPX receiver OD/EV (R8P OD/EV)

JR/DFA RG16BPX receiver OD/EV (R8P OD/EV)

of JR Propo
SKU: JRDFARG16BPX
DMSS 2.4GHz 16ch separate receiver system with E-Swich DMSS/Xbus
Price:
€264.00
Listing:
You Save:
(%)
To buy this product contact us at ordini@8fly.it

Description

This 16ch separate receiver system.

XBus compatible Diversity 16channel DMSS receiver w/Hybrid output port available
All output terminal to share both PWM & XBus.
XT60 connector equipped for 16AWG power cable out put from receiver voltage input.

Datasheet

Same as JR PROPO  "RG812BX OD/EV"

  • Dimension :14 x 31 x 42.5㎜ (par piece)
  • Weight : 15g (par piece)
  • Receiving System : 16 channel DMSS System with XBus (as a pair)
  • PWM Output ch : OD/1.3.5.7.9.11.13.15ch ・EV/2.4.6.8.10.12.14.16ch
  • Operating Voltage : 4.5-8.5V
  • Bidirectional communication : Xbus compatible
  • Telemetry Module integrated
  • Comply with E-switch
  • Capabel to adopt one additonal remote antenna as an option.
  • Fullrange receiver
  • Full range telemetry capability.(EV only)
  • 16ch Instruction Video 1
  • 16ch Instruction Video 2
