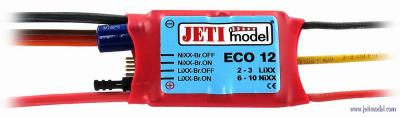

JETI ECO 12A brushless controller

JETI ECO 12A brushless controller

JETI ECO 12A brushless controller

of JETI Model
SKU: JETECO12
JETI ECO 12A
Price:
€34.06
Listing:
You Save:
(%)

Description

Line of economical brushless speed controllers

   We want to offer you more options but less directions. All requirements were reduced into 4 modes simply selected by jumper.

Mode 1: NiXX – Br. OFF – non active brake, power pack type NiCd or NiMH, cut off slow down to 5 Volts or 0,7 V per cell.

Mode 2: NiXX – Br. ON – active brake, power pack type NiCd or NiMh, cut off hard at 5 Volts or 0,7 V per cell.

Mode 3: LiXX – Br. OFF– non active brake, power pack type LiIon or Li-Polymer, cut off slow down. Minimum voltage 6 V for 2 cell pack, 9 V for 3 cell power pack.

Mode 4: LiXX – Br. ON– active brake, power pack type Li-Ion or Li-Polymer, cut off slow, minimum voltage 6 V for 2 cell pack, 9 V for 3 cell power pack

Further functions:

BEC- This provides the receiver and servos with a 5 volt supply direct from the drive battery and eliminates the need for separate battery. Please note the limitations on the number of servos given in the table
Note:when using economical class micro servos, it is necessary to reduce the number servos by one. When using fast servos or digital servos, it is necessary to reduce the number of servos by two.
PCO- The Power Cut-Off system gives a safety margin during flights. As the drive battery voltage falls with use of the motor during the flight the PCO checks the value and cuts-out the motor at a point which leaves sufficient power to operate the receiver and servos for a reasonable further period of time. It also provides a small margin of power for emergency motor operation (e.g. in case of landing difficulties) which can be obtained by fully closing the throttle for at least 1 second before slowly re-opening it.
Timing– Jeti model use special system to set optimal timing for each motor. Controller is able to choose right timing independed on number of motor poles.
TOP - Temperature Overload Protection. The Temperature Overload Protection protects the drive system by cutting out the power if the controller temperature rises to 100/110 degrees C, the controller automatically switches off the power to he motor .
