Description
CONTACT US TO KNOW OUR OFFER ON THE QUANTITY

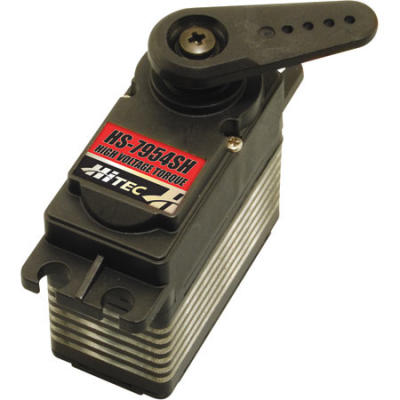

This is the HS-7954SH High-Voltage Ultra Torque Digital Servo from Hitec.
FEATURES: Ideal for giant scale planes, large helicopters, rock crawlers, monster trucks, 1/8 scale trucks and buggies and anywhere a high performance, high torque servo is needed. Coreless motor for precise centering and accuracy. G2 programmable digital circuit, programmable features include;
Dead Band Width Speed (reduction)
Fail Safe Position Direction (CW/CCW)
Fail Safe On/Off End Points
Overload Protection Resolution High/Low
Steel gears for much longer life than conventional metal gears
Nine O-rings for extra resistance to moisture and dust
Capable of operating on two cell LiPo packs
INCLUDES: HS-7954SH High-Voltage Ultra Torque Servo, 1.8" (45mm) diameter round
horn, 2.3" (59mm) long double sided horn, 2.8" (72mm) long double
sided horn, 1.3" (34mm) single sided horn, 0.83" (21mm) single
sided aluminum horn, 0.98" (25mm) single sided horn, four each
grommets, eyelets and mounting screws, instruction sheet
REQUIRES: Installing in model and connecting to control linkage and receiver
Datasheet
SPECS:
Size: 1.57 x 0.78 x 1.45" (40 x 20 x 37mm)
Weight: 2.30oz (65.2g)
6.0V 7.4V
Speed: 0.15 sec 0.12 sec
Torque: 333 oz/in 403 oz/in
Wire Size: 22 gauge twisted wire with gold plated connectors
Drivetrain Type: Dual ball bearing
