SKU: XMBHY
Bhyon ARF 2 colori OD
Price:
€1,000.00
Listing:
You Save:
(%)
To buy this product contact us at ordini@8fly.it

Description

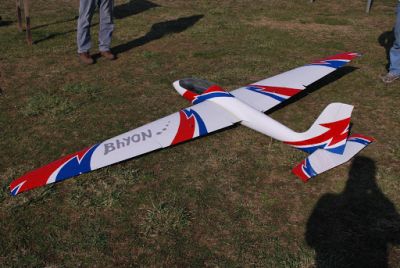

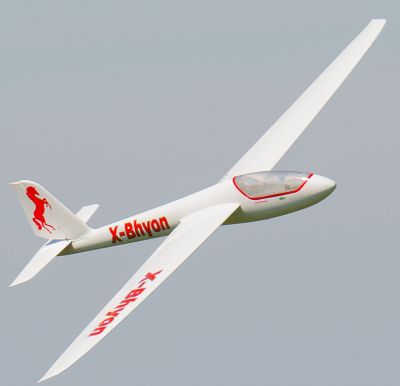

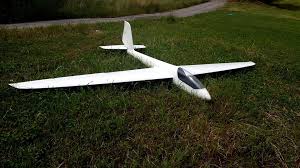

Glider_it Bhyon ARF 2 colori OD

Bhyon is a project by Giulio Cornia and stems from Giulio's desire to create a glider
high performance acrobatic that allowed to take altitude even under conditions
not exciting, result obtained with a generous wing surface, a modern thin wing profile
which exploits the camber variation in the various flight phases
By adapting the original design to the construction techniques of all-fiber models, Xmodels ( now Glider-it) has created
a 3.2 version using an even thinner wing profile than the original design and with the
front section of the fuselage modified to easily install even an electric motor.

the weight in flight order of approximately from 5.5 kg to 6.5 kg (depeng from choised version) in order of flight

Datasheet

Aperture alare - wingspan 3.20m
Lunghezza - length ca 1.6m
Superfice alare – wing area 77 dm2
Peso in ordine volo – flying weight from 5.2 kg
Carico alare - wing load from 70 gr/dm2
Profilo attcacco - airfoil root : 350mm 9% camber 1.7
Profilo estremità - airfoil tip : 150 mm 8% camber 1.4
