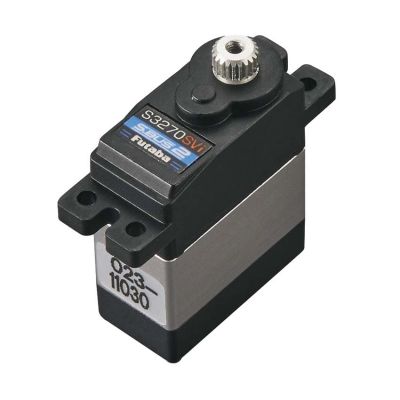

S3270SVi– S.Bus2 High-Voltage Micro Air Servo

SPEED:
0.12 sec/60°at 6.6V
0.11 sec/60° at 7.4V

TORQUE:
2.6 kgf/cm at 6.6V
36.1 ozf/in at 6.6V
3.0 kgf/cm at 7.4V
41.7 ozf/in at 7.4V

SIZE:
23 mm x 11.8 mm x 28.8 mm
0.91 in x 0.46 in x 1.13 in

WEIGHT:
16.2 g
0.57 oz

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.0-8.4V

The S3270SVi servo is a micro servo for small electronic powered models. Pay special attention to the following points:

• Do not use with gas powered engine models or other models that require high torque.
• Always use the servo horn specifically designed for this micro servo. Do not use conventional servo horns.
• Do not expose the servo to dust and water.
