Extreme Flight LASER 74" 1,88 mt. RED

Extreme Flight LASER 74" 1,88 mt. RED

Extreme Flight LASER 74" 1,88 mt. RED

SKU: EXF-LAS74R
LASER 74" 1,88mt.
To buy this product contact us at ordini@8fly.it

Description

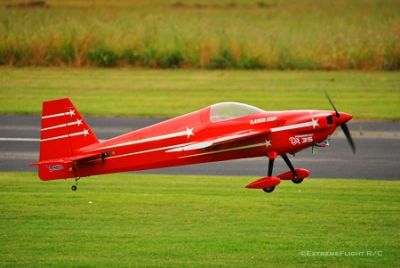

Presenting the brand new Extreme Flight 74" Laser EXP V2! The Laser EXP has exploded onto the scene in recent years and now we are releasing the next evolution of this design, the V2! By strategically implementing composite G10/ply laminate, carbon stringers and spars we've been able to reduce material thickness substantially allowing us to reduce weight while adding strength and rigidity. We've modified the design to require only a single elevator servo thus further reducing overall weight. We've also implemented the self jigging stab/elevator installation that has become so popular among our customers assuring a hassle-free, easy and accurate assembly. We've added the gorgeous printed scheme from our 91" Laser EXP and also offer the traditional Loudenslager scheme that is so much a part of the Laser legend. As many have discovered, the Laser EXP may well be the ultimate aerobatic RC model, excelling in precision, XA and old school low and slow 3D maneuvers. Find out for yourself what the Laser EXP can do for your flying skills.



Datasheet

Specifications

Wingspan: 74 inches
Length: 74 inches
Wing Area: 1150 sq. in.
Weight: 11.5 - 12.5 lbs



Gas Power System

Desert Aircraft DA 35
FlowMaster 12 or 14 oz. fuel tank
EF Fuel Dot



Electric Power System

Motor: Xpwr 35cc motor
ESC: Castle Creations HV-120 Edge ESC (Must Use Firmware v 4.22)
Battery: Two 6S 3300-4000 mAh batteries in series (2S)
Prop: Beechwood electric propeller: 20 x 10, 20 x 12, 21 x 10



Spinner

3.5 inch EF Carbon Spinner for gas or electric



Radio

Modern computer radio



Servos

Qty. 4 full size, metal gear hi-torque servos.
Qty. 1 throttle servo.



Servo Arms

Qty. 2 1.5 inch single servo arms (tapped 3mm) for ailerons
Qty. 1 1.5 inch single servo arms (tapped for 3mm) for elevator
Qty. 1 3 inch double servo arm (tapped for 3mm) for pull-pull rudder



Servo Extensions

Qty. 2 Extreme Flight 20 AWG 6 inch for Rx to Ailerons
Qty. 2 Extreme Flight 20 AWG 12 inch for Ailerons
Qty. 1 Extreme Flight 20 AWG 24 inch for Elevators



Ships in 2 Boxes

Fuse 59" x 19" x15" @15lbs
Wing 38" x 23" x 6" @ 7lbs
