Description
High power—low weightInnovation is excellence; so, when DLE added innovations like improved crankshaft bearings, and a better piston/cylinder fit to their engines, serious R/C pilots got very excited. The DLE-61 weighs four pounds and cranks out over six horsepower from a durable and long-lasting engine.

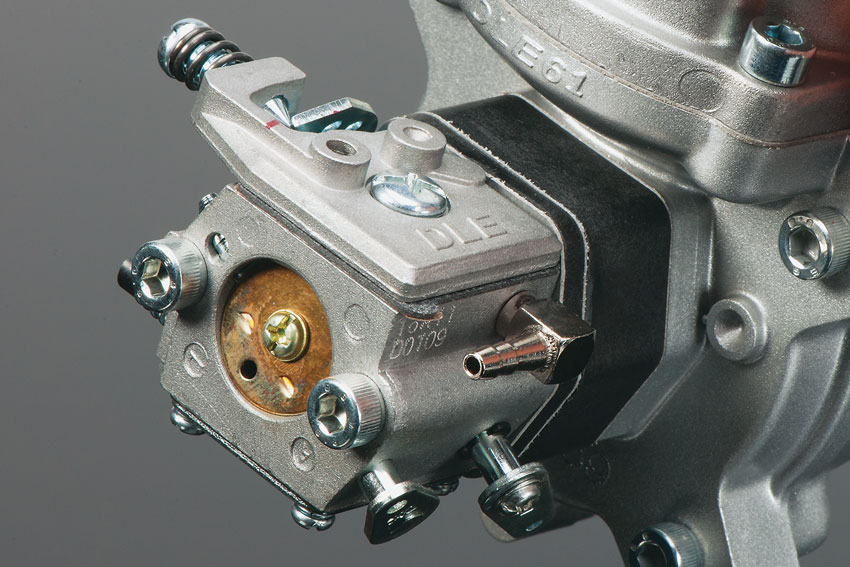

Extras like an airplane-specific carburetor, muffler, standoffs and electronic ignition boost performance even further. It's a solid 60cc engine at the best price you'll find.
Features:
- Efficient, light design for high power-to-weight ratio
- Light piston for fast acceleration, excellent compression and low vibration
- CNC-machined parts for high performance and long life
- Enlarged crankshaft bearings
- Increased piston/cylinder contact area
- Two petal reed valve
- Muffler included for optimized power
- Spark plugs
- Spiral wire wrap
Datasheet
Stock Number: DLEG0061
Displacement: 61.0 cc (3.7 cu in)
Bore: 1.85 in (47 mm)
Stroke: 1.38 in (35 mm)
Total Weight: 4.0 lb (1814 g)
Output: 6 hp @ 7,500 rpm
Includes: Electronic ignition module, muffler, spark plug, standoffs, spiral wire wrap, connector safety clips.
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Suggested Propellers: 22 x 10, 23 x 8, 23 x 10, 24 x 8
DLE-61 Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
Gas/Oil Mix: 30:1
Replacement Spark Plug: DLEG4026
Static Thrust: 20.9 lb (9.5 kg) @ 328 feet altitude, 18.7 lb (8.5 kg) @ 1,800 feet altitude
Weight Breakdown: Engine: 2.8 lb (1273 g), Muffler: 3.9 oz (110 g), Ignition Module: 3.9 oz (110 g)
