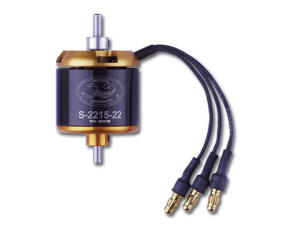

The Scorpion S-Series 22mm Brushless Motors are designed to provide reliable power for your smaller RC aircraft. These motors feature replaceable 3mm prop shafts with dual ball bearings. All Scorpion S-Series motors come with 3.5mm bullet style connectors already installed, and include a complete hardware package containing 3 matching female bullet connectors for your Speed Controller, a cross style back plate mount with screws, and a prop adapter, all in an attractive metal can package. All of the Scorpion S-Series 22mm motors are built with a 12 tooth stator assembly, with 14 magnets in the rotor housing.
Scheda Tecnica
Specifications
Model Number: S-2215-22
Rotation Speed: 940 Kv / RPM/V
No-Load Current: 0.5 Amps @ 10 volts
Motor Resistance: 0.13 Ohms
Max Continuous Current: 16A
Max Continuous Power: 180W
Body Dimensions (Diameter x Length): 27.9mm x 27.6mm
Shaft Dimensions (Diameter x Length): 2.95mm x 8.2mm (Front) / 4.8mm (Back)
No. of Stator Arms: 12
No. of Magnet Poles: 14
Recommend Model: Airplane
