Descrizione

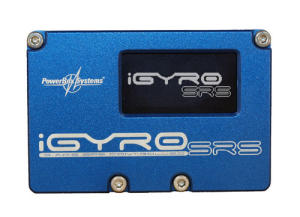

Giroscopio Powerbox 3 assi completo di GPS Sensor, USB adapter e SensorSwitch.
The PowerBox iGyro SRS is a completely new type of gyro system intended for fixed-wing model aircraft. At the development stage our constant aim was to combine maximum versatility with simplicity of operation. The system incorporates 8 regulatory algorithm specificaly developed for fixed wing models, whlch causes hardly any alteratlon in the model's famil ar flying characteristics; at the same time the eeroplane flies much mora smoothly and accurately, and is less sensitive to unwanted weather-induced or aerodynamic influences. The need for mixers, such as elevator to rudder or flaps, is eliminated entirely. The iGyro exploits the latest servo bus tecnology to minimise the extremely complex wiring arrangements necessitated by previous gyro systems. The ability to assign any channel to the gain edjusters makes it possible to set up the desired gyro effect accurately in just one short flight. Independent adjustment of each of the five outputs is possible, enabling the modeller to set up gyro gain and direction of effect precisely. The separate GPS Sensor provides 8 means of obtaining 8 constant gyro effect over the model's ful speed range, effectively eliminating the problem of over-compensation leading to oscillation in high-speed flight The control system is based on menus displayed on the graphic OLED screen, which makes short work of all set-up tasks.
Scheda Tecnica
- Extremely accurate triple-axis MEMS sensor
- Special regulatory algorithm designed for fixed-wing model aircraft
- Three-stage flight phase switching
- Three axes distributed to five servos, each adjustable independently
- GPS-regulated gyro gain
- Integral delta mixer
- Can be installed in any attitude
- Graphic OLED screen with 128 x 64 pixels
- Ultra-simple menu-controlled programming method using the SensorSwitch
- SRS technology for use with various bus systems: Futaba S-Bus, Spektrum DSM2 / DSMX, HoTT, M-Link and Jeti
- Unrestricted channel assignment (channel mapping)
- Digital output can be passed on to an SRS PowerBox system
- 16-bit processor for fast, high-resolution signal processing
- Settings can be stored on a PC and reloaded at any time
- Can be updated using the PowerBox USB Interface Adapter
- Robust aluminium case
- Operating voltage: 4,0V - 9,0V
- Current drain, iGyro: 51 mA
- Current drain, GPS: approx. 60 mA
- Maximum current: min. 10 A
- Receiver: Two, using serial inputs
- RC systems supported: DSM2 / DSMX, Futaba, HOTT, M-Link, Jeti
- Gyro sensor type: MEMS
- Number of sensor axes: 3
- Gyro regulation modes: Heading mode, Normal mode
- Channels: 18
- Servo outputs: 5
- Servo signal resolution: 0.5 µs
- Servo frame rate: 18 ms
- Screen: Graphic OLED, 128 x 64 pixels
- Dimensions: 52 x 35 x 14 mm
- Weight incl. GPS sensor: 50 g
- Temperature range: -30°C to +75°C
- EMV approval: EN 55014-1:2006
- CE: 2004/108/EG
