PowerBox SPARKSWITCH

PowerBox SPARKSWITCH

PowerBox SPARKSWITCH

di PowerBox Systems
Codice: PBXSPARKS
PowerBox Systems Kill-Switch
Prezzo:
€ 49,81
Listino:
Risparmi:
(%)
Per acquistare questo articolo inviaci un'email a ordini@8fly.it

Descrizione

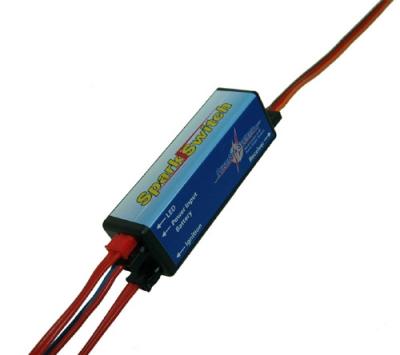

The SparkSwitch is a reliable high-performance ignition switch. The entire design of the SparkSwitch has deliberately been kept simple, whilst retaining all the important functions. The ignition switch is ready for use as supplied, and requires no set-up procedure. All you have to do is set up your radio control transmitter for use with the switch.

Scheda Tecnica

Specification:
  • Input voltage 4.0 - 9.0 V
  • Regulated output voltage 5.9 V
  • Max. output current 2 A, peak 4.5 A
  • External LED power-on monitor
  • Power circuits isolated by opto-coupler
  • Two different switching modes
  • Current drain at receiver: 2 mA
  • Current drain at switch side, power-on: 19 mA
  • Current drain at switch side, power-off: 0.2 µA
  • Fail-safe mode
  • Weight including patch-lead: 22 g
