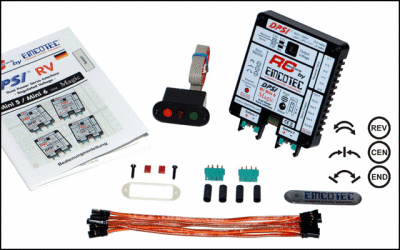

Emcotec DPSI RV Mini 6 Magic
Descrizione
DPSI RV Mini 6 (2008)
* Fully redundant power and servo management system of the latest generation
* Current distribution of 6 receiver channels to 7 servos (additional servos directly connectable to the receiver)
* Up to 50A peak current load for optimal servo power
* Failsafe electronical power switches with the proven pin switch actuator - the switching is not influenced by a micro controller (CSHC)
* Regulated output voltage for the use of all battery types
* SDVS - Selectable Dual Voltage Supply for discrete receiver and servo voltage provisioning:
* Receiver voltage switchable between 5.2V and 5.9V
* Servo voltage switchable between 5.9V and 7.4V
* LowDropOut regulators for minimum dissipation loss and maximum power
* Protection of the receiver against the so-called "dynamo effect"
* APP - Advanced Push-Pull servo pulse amplification - ideal for 2.4GHz applications
* HFIB - High Frequency Interference Blocking rejects interference from long servo cables
* IVM - Intelligent Voltage Monitoring with integrated status and alarm display
* Easily programmable for all battery types: NiCd, NiMH, Li-Ion, Li-Po or LiFePo4
* Optical and acoustical error indication
* High grade ABS housing
