Emcotec DPSI RV Mini 5 Magic
Descrizione
DPSI RV Mini 5 Magic - with servo matching!
* Fully redundant power and servo management system of the latest generation
* Current distribution of 5 receiver channels to 8 servos (additional servos directly connectable to the receiver)
* Up to 50A peak current load for optimal servo power
* Integrated servo matching for built-in V-cables
* Simple programming of the servo settings with a small magnet - no PC and no external programming unit necessary
* Failsafe electronical power switches with the proven pin switch actuator - the switching is not influenced by a micro controller (CSHC)
* Regulated output voltage for the use of all battery types
* SDVS - Selectable Dual Voltage Supply for discrete receiver and servo voltage provisioning:
* Receiver voltage switchable between 5.2V and 5.9V
* Servo voltage switchable between 5.9V and 7.4V
* LowDropOut regulators for minimum dissipation loss and maximum power
* Protection of the receiver against the so-called "dynamo effect"
* APP - Advanced Push-Pull servo pulse amplification - ideal for 2.4GHz applications
* HFIB - High Frequency Interference Blocking rejects interference from long servo cables
* IVM - Intelligent Voltage Monitoring with integrated status and alarm display
* Easily programmable for all battery types: NiCd, NiMH, Li-Ion, Li-Po or LiFePo4
* Optical and acoustical error indication

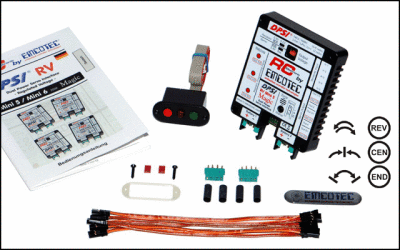

* High grade ABS housing Delivery includes On/Off switch including mounting hardware, switching magnet, MPX high current connectors, 5 patch cables, operating instructions
