Xicoy adattatore per Telemetria con radio Futaba, Jeti e Multiplex

Xicoy adattatore per Telemetria con radio Futaba, Jeti e Multiplex

Xicoy adattatore per Telemetria con radio Futaba, Jeti e Multiplex

Codice: XITELE02
Telemetria per radio Futaba, Jeti e Multiplex
Prezzo:
€ 36,60
Listino:
€ 42,70
Risparmi:
€ 6,10 (14%)

Descrizione

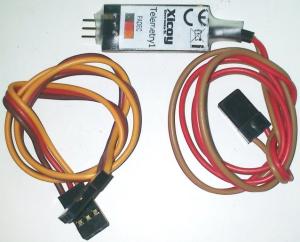

Adapter to connect the telemetry data from XICOY V10 and newer ecus (all that use a servo lead on data terminal connection)  to JETI FUTABA and MULTIPLEX receivers.

Supports several engines on the same receiver

Ecus V6 and older (connector RJ45 8 pin) not supported

Supports Futaba MZ18 and SG14. Robbe Telemetry Box not supported.

Translates all relevant parameters (RPM. EGT, battery, Pump, Throttle and remaining fuel) from the ecu to the TX, where they can be recorded and alarms set.

If used on JETI radios, it provides full emulation of the ecu data terminal trough Jetibox  to access to all ecu functions, and to monitor the startup of the engine. Keystrokes of the buttons on the transmiiter are sent to the ecu to allow the navigation through all the menus on the ecu.

On Futaba radios the measures of the received signal strenght and failsafe counter are transmitted to the TX for a evaluation of the quality of the radio link and to set a alarm if link became marginal

Check the user's manual: http://www.xicoy.com/Telemet1_0.pdf  for detailed specifications on each transmitter system.

Please ask us for posible solutions on other radio brands.

Scheda Tecnica

Videos- JETI:

Navigating trough the ecu menus from transmitter:  https://www.youtube.com/watch?v=8l4brRHrA4c

Monitoring the engine startup:

Engine run, data logiing and displaying the data after a run
