XICOY Turbina X45 compact version

XICOY Turbina X45 compact version

XICOY Turbina X45 compact version

Codice: XIX45C
Turbina X45 compact version
Prezzo:
€ 1.938,58
Listino:
Risparmi:
(%)
Per acquistare questo articolo inviaci un'email a ordini@8fly.it

Descrizione

Compact version.  Includes combined data terminal and connecting hub.

  • Power:  45N  - 10lb
  • Extremely low residual thrust:  1,8N -0,4lb
  • Exceptional  idle to full  thrust ratio of  25 times.
  • Max RPM: 225.000
  • Minimum RPM: 60.000
  • Diameter: 59,8 mm
  • Lenght: 165 mm
  • Engine weight: 395 g including mounting strap and FOD filter.
  • Installed weight: 470 g (inc Engine, Pump and leads. Not inclusive of battery.)
  • Fuel  Comsumption: 20 g/min at idle.  145 g/min at full power.
  • Easily adjustable thrust output in Newton and in Lb from 1,8N  to 45N.
  • Kerosene and diesel fuel + 4% oil
  • Kerostart fast starting of 25 sec
  • Inflight Restart technology. Typically half time than Normal Start.
  • Brushless fuel pump with integrated controller
  • High speed Brushless starter motor
  • All new Fully Integrated ecu
  • Telemetry for Jeti, Futaba, HoTT, MPX, PB Core, Spektrum, JR and FrSky. (Optional module)
  • Fuel and FOD filters included.

Warranty: 2 years or 25h, wichever comes first. Warranty includes parts & labor, but does not include shipments back to factory in Spain and return.

Scheda Tecnica

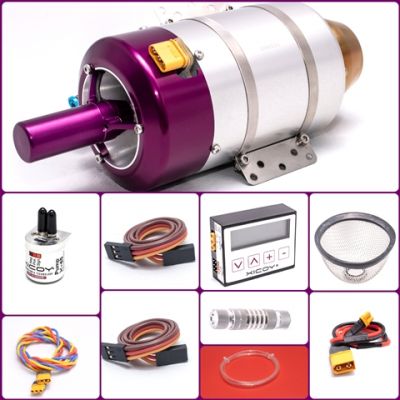

Developed for  normal  installations, include the engine,  pump, fuel filter, cables and interconnecting hub with integrated miniature monochrome data terminal.
