SKU: SECENTR100
Props Drilling Jig 6M (DLE111)
Price:
€35.58
Listing:
You Save:
(%)

Description

Engine: DA100, DL100, 3W100, DA85, MVVS58, 3W55, 3W50, EVO58, MINTOR 110
Mounting: 6 Hole
Hole circle: 29mm
weight: 101g

Drill : 5.1mm Includ

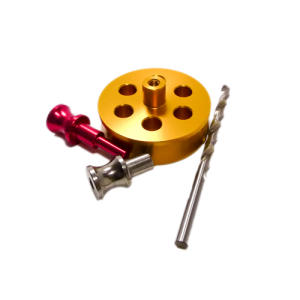

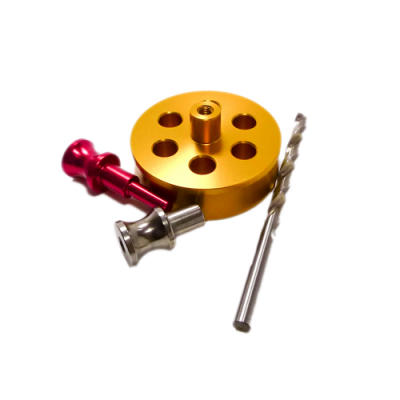

Material
jig(Gold): AL6061 (anodized)
Rotation prevention Pin(Red): AL6061 (anodized)
Drill Holders(Silver): SKD11 (heat treatment)

Prop drill jig for 6 bolt fixing comes with drill guide locking peg and drill bit.Hand held drill can be used as drill guide keeps drill straight no need for a pillar drill .

Instructions

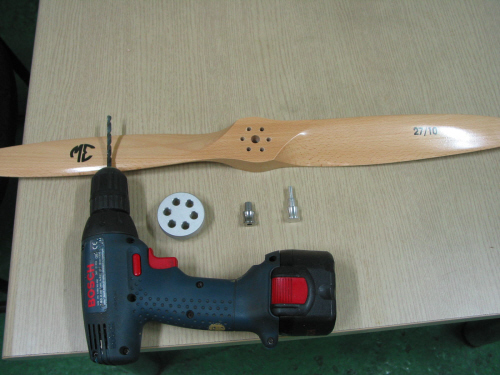

Step 1: insert jig into the hole to the propeller

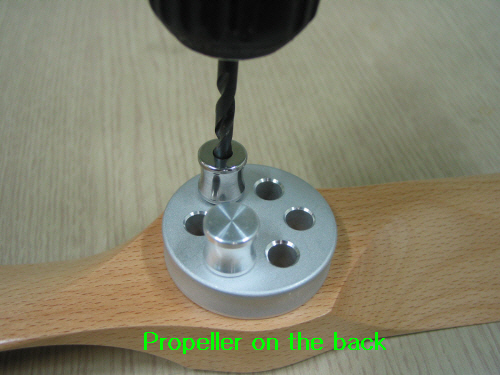

Step 2: After inserting jig, drill the first hole using the silver drill guide
Step 3: Place rotation prevention pin (red) into the drilled hole
Step 4: Drill the remainder of the holes using the drill guide.
